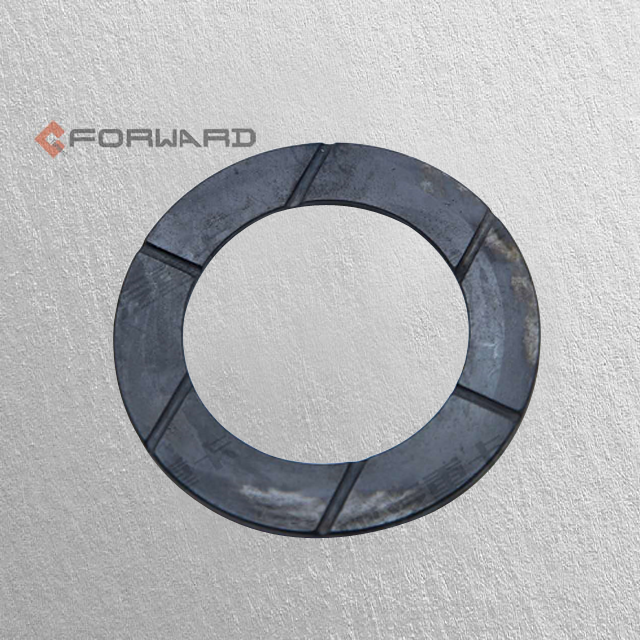

Half shaft gear gasket function, gear transmission must have a certain tooth side clearance, too much clearance will produce noise, too little clearance will wear the gasket will produce fine particles to cause early wear differential gear, differential shaft gear adjustment pad to adjust the appropriate tooth side clearance.
| 1 | 138090320159 | Differential adjustment nut |
| 2 | 190003326148 | Tapered roller bearing 32216 |
| 3 |
Q151B1480TF2 |
Differential bolt 190003803712 |
| 4 | 199012320198 | Differential housing assembly |
| 5 | 118000320131 | Half shaft gear gasket (on demand) |
| 6 | 199012320009 | Half shaft gear |
| 7 | DZ90129320002 | Cross shaft assembly |
| 8 | DZ90129320003 | Planetary gear |
| 9 | DZ90129320082 | Planetary gear gasket |
| 10 | DZ9114420671 | Bevel gear pair |
| 12 | DZ9114320013 | Bevel gear bolt |
| DZ9114320011 | Bevel gear bolt |
