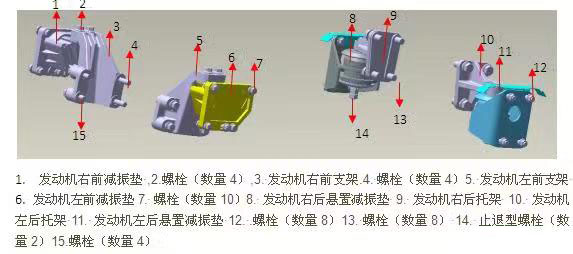

X3000/F3000 model, double-decker frame, equipped with Weichai WP12/13 series engine, the corresponding engine mount mainly includes:
1. Right front damping pad of DZ95259590168 engine
2. Q1811655TF3 bolt
3.DZ95259590198 engine right front bracket
4. Q18416100TF3 bolt
5.DZ95259590197 engine left front bracket
6.DZ95259590167 engine left front damping pad
7. Q1811445TF3 bolt
8.DZ95259590068 engine right rear suspension damping pad
9.DZ97259590116 Right rear engine bracket of
10.DZ97259590115 engine left rear bracket
11.DZ95259590067 engine left rear mount damping pad
12. Q1811440TF3 bolt
13. SXQ1842050TF3 bolt
14.DZ93259590007 stop bolt
15. Q1841675TF3 bolt
X3000/F3000 model, variable section (940-850) double-decker frame, equipped with Weichai WP12/13 series engine, the corresponding engine mount mainly includes:
X3000/F3000 model, variable section (940-850) double-decker frame, equipped with Weichai WP12/13 series engine, the corresponding engine mount mainly includes:
1. Right front damping pad of DZ95259590168 engine
2. Q1811655TF3 bolt
3.DZ95259590196 engine right front bracket
4. Q18416100TF3 bolt
5.DZ95259590195 engine left front bracket
6.DZ95259590167 engine left front damping pad
7. Q1811445TF3 bolt
8.DZ95259590068 engine right rear suspension damping pad
Right rear engine bracket of DZ97259590116
10.DZ97259590115 engine left rear bracket
11.DZ95259590067 engine left rear mount damping pad
12. Q1811440TF3 bolt
13. SXQ1842050TF3 bolt
14.DZ93259590007 stop bolt
15. Q1841675TF3 bolt
